Specification Diagrams of Classic American Wainscoting

The New England Classic American^® wood panel system is simple to specify and install. Four basic heights, 32", 36", 40" and 44", combined with five panel widths, 9", 12", 15", 18", and 23", to accommodate almost any application.

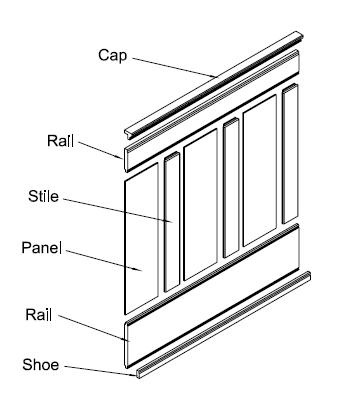

Components are packaged for convenient ordering, handing, and use.

• 4 panels
• 4 stiles (3" wide)

FramePak^®
Available with either 4" base rail (32" and 40" FramePak ® ) or 8" base rail (36" and 44" FramePak ® ).

• 1 cap
• 1 top rail
• 1 bottom rail (4" or 8")
• 1 shoe

StilePak^®
Available in 32" and 36" heights. Adjusts the layout to fit variable length walls, completes corners and windows by trimming to desired width. Each package contains:

• 4 end stiles (10" wide)

6" PanelSet^®
Adjusts the layout to fit variable length walls. Each package contains:

• 4 panels (6" wide)

CasingPak^®
Window and door trim designed to match. Each package contains:

• 3 backbands ( 8' long)
• 3 casings ( 8' long)

Stair PanelSet^®
Available for either left-hand or right-hand stairs. Each package contains:

• 2 panels (9" wide)
• 2 stiles (3" x 23")

Stair StilePak^®
Adjusts the layout to fit variable length stairs and to transition from stair to straight run at top and bottom of stairs. Each package contains:

• 2 stiles (9" primed or 10" x 28")
